Throttle Valve Rexroth Interchangeable

Throttle Check Valve Z2FS 6

MANUFACTURER Genuine Huade Hydraulic
STANDARDS ISO 4401 / DIN 24340
AVAILABILITY Factory Direct Stock
Throttle Check Valve Z2FS 6

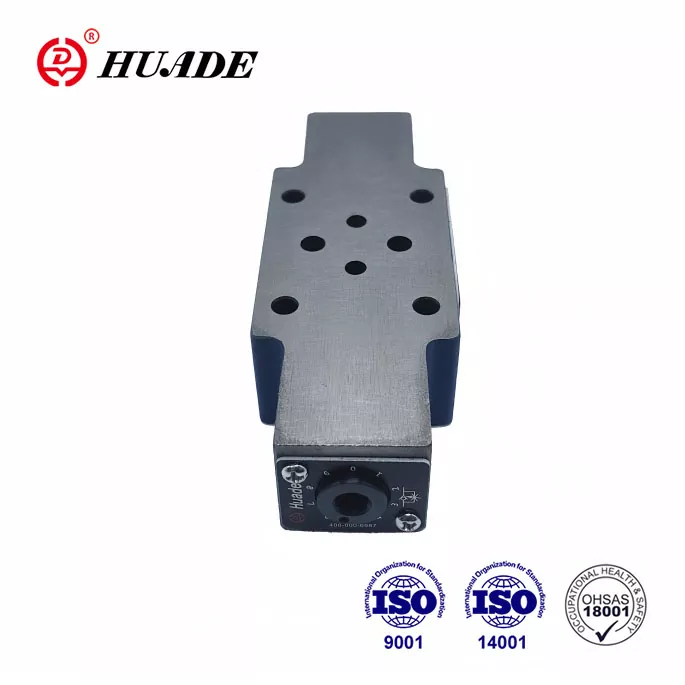

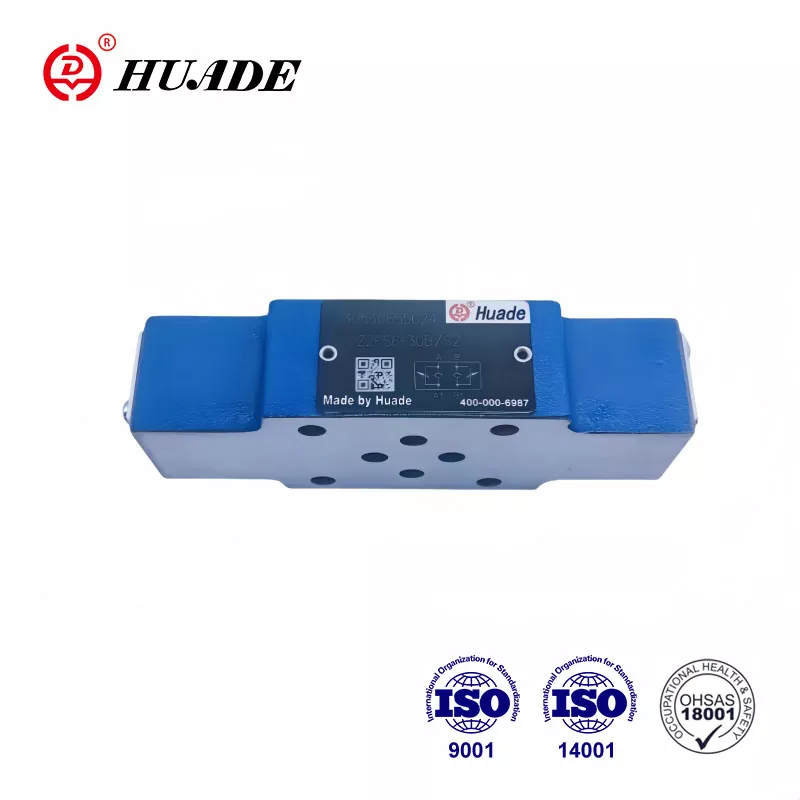

Throttle Check Valve Z2FS 6 - Image 2

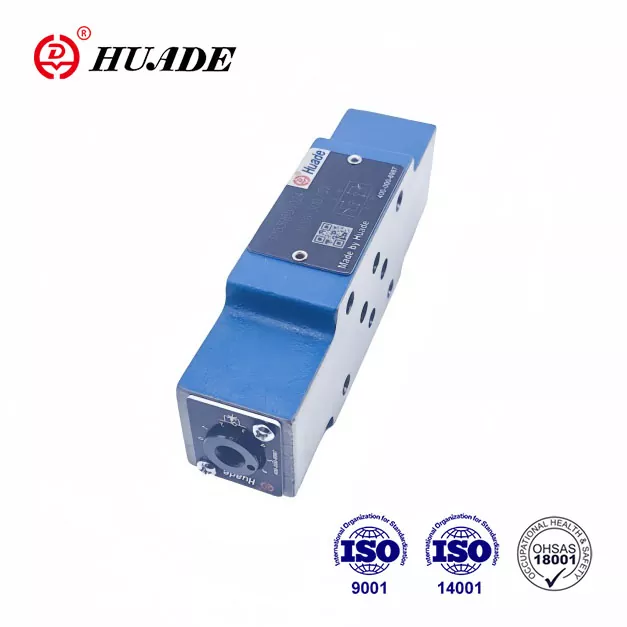

Throttle Check Valve Z2FS 6 - Image 3
TECHNICAL REPLACEMENT NOTICE

This Huade® directional control valve serves as a 100% direct drop-in replacement for Bosch Rexroth THROTTLE-CHECK-VALVE-Z2FS-6 equivalents. Dimensions, mounting interfaces, and technical parameters are identical. Designed for cost reduction in industrial and mobile hydraulic systems.

• Product features: Double throttle/check valve, sandwich plate design, Rexroth-compatible performance
• Specifications: Z2FS 6 series, maximum flow 80-350 L/min, working pressure up to 35 MPa
• Applications: Main/pilot flow limiting, meter-in/meter-out control in hydraulic systems

Request B2B Quote

Submit your target quantity and technical questions. Our hydraulic engineering team will provide a factory-direct quote and lead time estimate within 24 hours.

Send Product Inquiry → 📥 Download PDF Datasheet
💬 WhatsApp: +86-18217786775
✓
100% Genuine Huade Direct factory authorized supply
✓
ISO 4401 Mounting ISO 4401 / Rexroth interchangeable
✓
Secure Packaging Sealed rust-proof global shipping

Technical Data Sheet

  • Product Overview
  • Features & Applications
  • Technical Parameters

Product Overview

Valves type Z 2 FS 6 are double throttle/check valves in sandwich plate design. This valve is suitable for vertical stacking assembly and is used for inlet or outlet meter-out control. As a result of two long-term cooperation with Rexroth, this throttle Z2FS 6 matches Rexroth in performance and can replace Rexroth® Z2FS6 3XB series. It is an affordable alternative for Rexroth.

Technical data (for applications outside these parameters, please consult us!)

Mineral oil(for NBR seal),or phosphate ester(for FPM seal)

Key Features

  • Sandwich plate design
  • Porting pattern to DIN 24 340, from A, ISO 4401 and CETOP - RP 121H
  • Limiting of main or pilot flow with two service ports
  • Meter-in or meter-out control.

Industrial Applications

  • Throttle check valves Z2FS 6 are used to limit main or pilot oil flow at one or two service ports.
  • Two symmetrically arranged throttle/check valves limit flow (by means of adjustable throttle spools) in one direction and permit free return flow in the other direction.
  • Main flow limiting
  • The double throttle/check valve is fitted between the directional valve and the subplate to change the speed of an actuator (main flow limiting).
  • Pilot flow limiting
  • In the case of pilot operated directional valves, the double throttle/check valve may be used as a pilot choke adjustment (pilot flow limiting). In this case, it is fitted between the main valve and the pilot valve.
  • Structure of Double throttle/check valve, Type Z2FS6 30B
  • Principle of Hydraulic systems

Technical Parameters

Mechanical ratings and operating limits for the Throttle Check Valve Z2FS 6:

Parameter / Dimension Name Value / Rating Specification
Technical data (for applications outside these parameters, please consult us!) Technical data (for applications outside these parameters, please consult us!)
Size - 6 - 16 22
Maximum flow (L/min) - 80 - 250 350
Maximum working pressure(MPa) - 31.5 - 35 35
Pressure fluid - Mineral oil(for NBR seal),or phosphate ester(for FPM seal) Mineral oil(for NBR seal),or phosphate ester(for FPM seal)
Viscosity range(mm ²/s) - 10 to 800 10 to 800
Fluid temperature range(℃) - -30 to+80 -30 to+80
